KRX164 VN

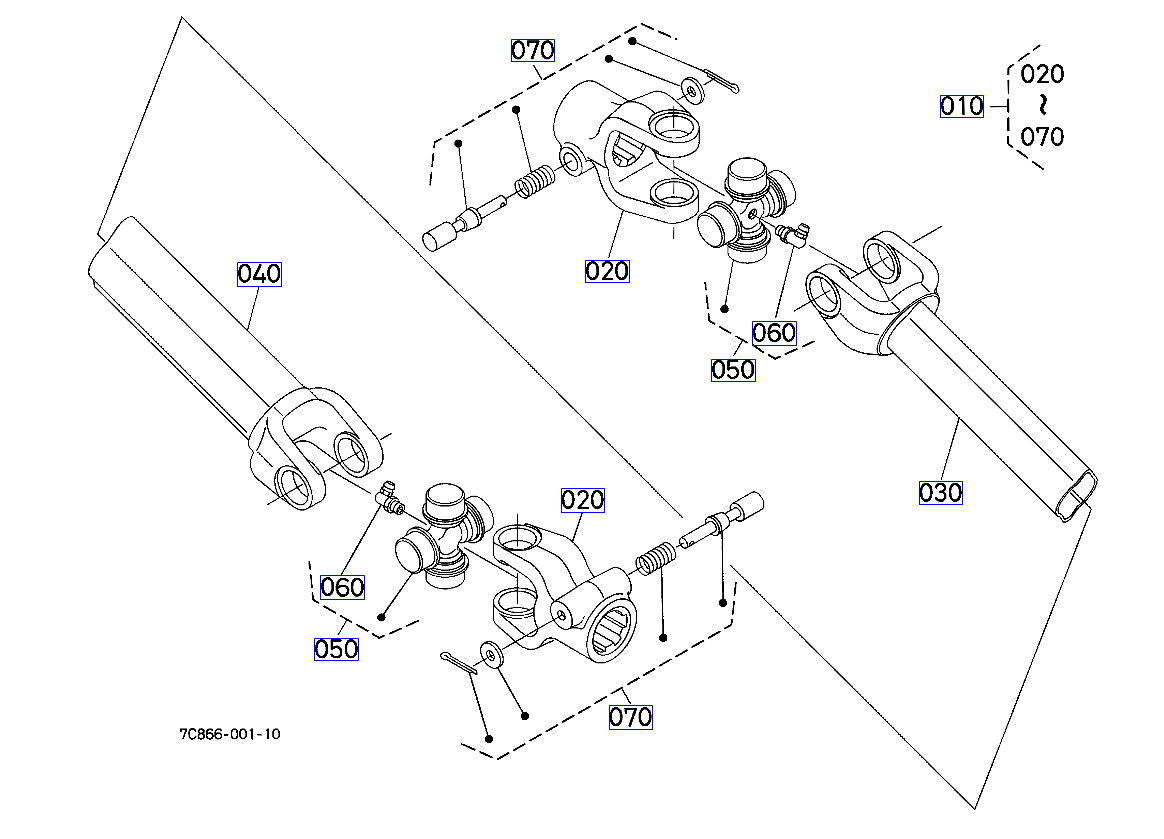

Trục các đăng

STT	Tên sản phẩm	Mã số	Giá bán
010	JOINT,UNIV,ASSY ( kg) (JOINT,UNIV,ASSY)	TC322-89212	10,293,000
020	YOKE (1000 kg) (Bát kẹp)	70857-58120	1,323,000
030	YOKE(SHAFT) ( kg) (YOKE(SHAFT))	7P076-63320	3,299,000
040	YOKE(SLEEVE) ( kg) (YOKE(SLEEVE))	7P076-63330	3,958,000
050	ASSY SPIDER (0.490 kg) (Bộ nan hoa)	70531-52250	1,388,000
060	NIPPLE,GREASE (0.010 kg) (Núm vô mỡ)	70569-58240	52,000
070	PIN,ASSY(LOCK) (0.055 kg) (Bộ chốt)	70678-58220	193,000

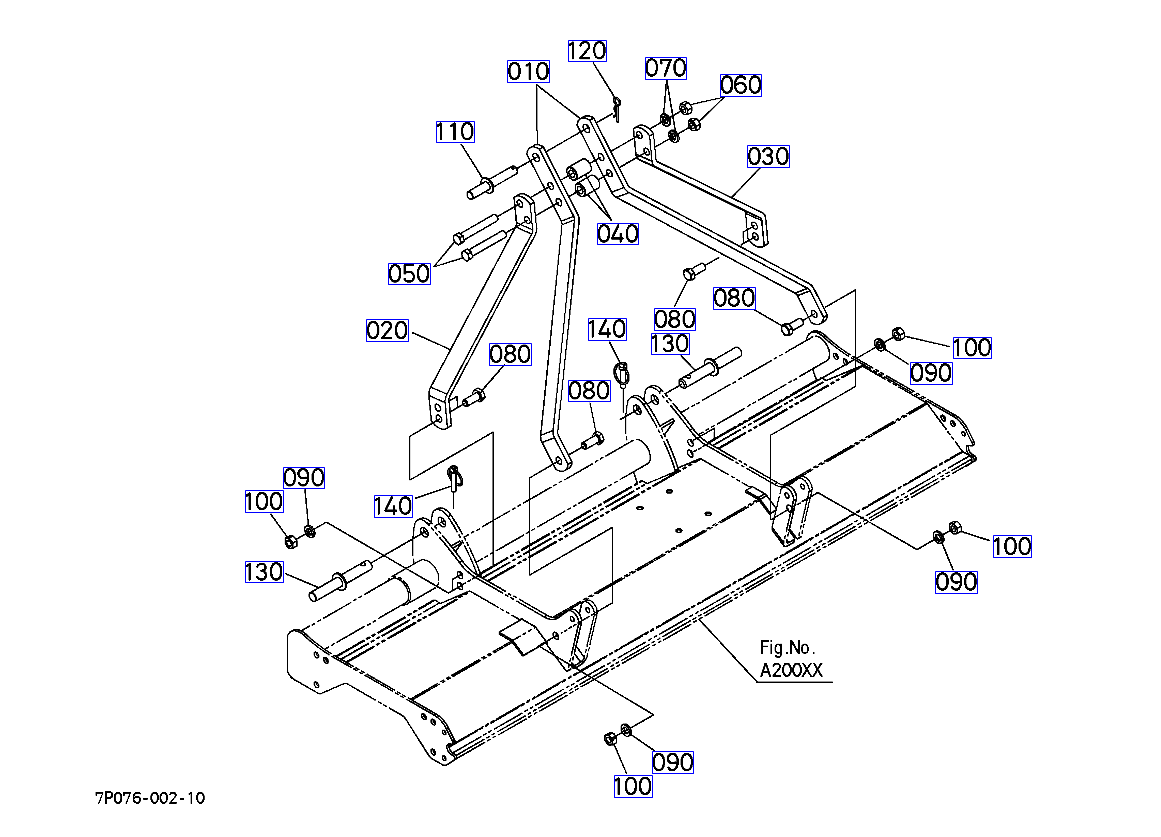

Khung máy

STT	Tên sản phẩm	Mã số	Giá bán
010	LINK(REAR) ( kg) ()	7P076-57282
020	LINK(FRONT,LH) ( kg) ()	7P076-57292
030	LINK(FRONT,RH) ( kg) ()	7P076-57302
040	BUSH ( kg) (Ống lót)	W9516-57130	120,000
050	HEX.BOLT (0.200 kg) (Bu lông)	01053-51602	83,000
060	HEX.NUT (0.030 kg) (Đai ốc)	02056-50160	23,000
070	WASHER,SPRING LOCK (0.010 kg) (Long đền)	04512-50160	8,000
080	HEX.BOLT (0.085 kg) (Bu lông)	01176-51640	29,000
090	WASHER,SPRING LOCK (0.010 kg) (Long đền)	04512-50160	8,000
100	NUT (0.030 kg) (Đai ốc)	02076-50160	19,000
110	PIN,TOP ( kg) (Chốt)	W9516-59510	213,000
120	PIN,SNAP ( kg) ()	05515-51600	22,000
130	PIN,LOWER ( kg) (Chốt)	W9516-59520	171,000
140	PIN,TOP LINK REAR ( kg) (Chốt)	W9501-85000	58,000

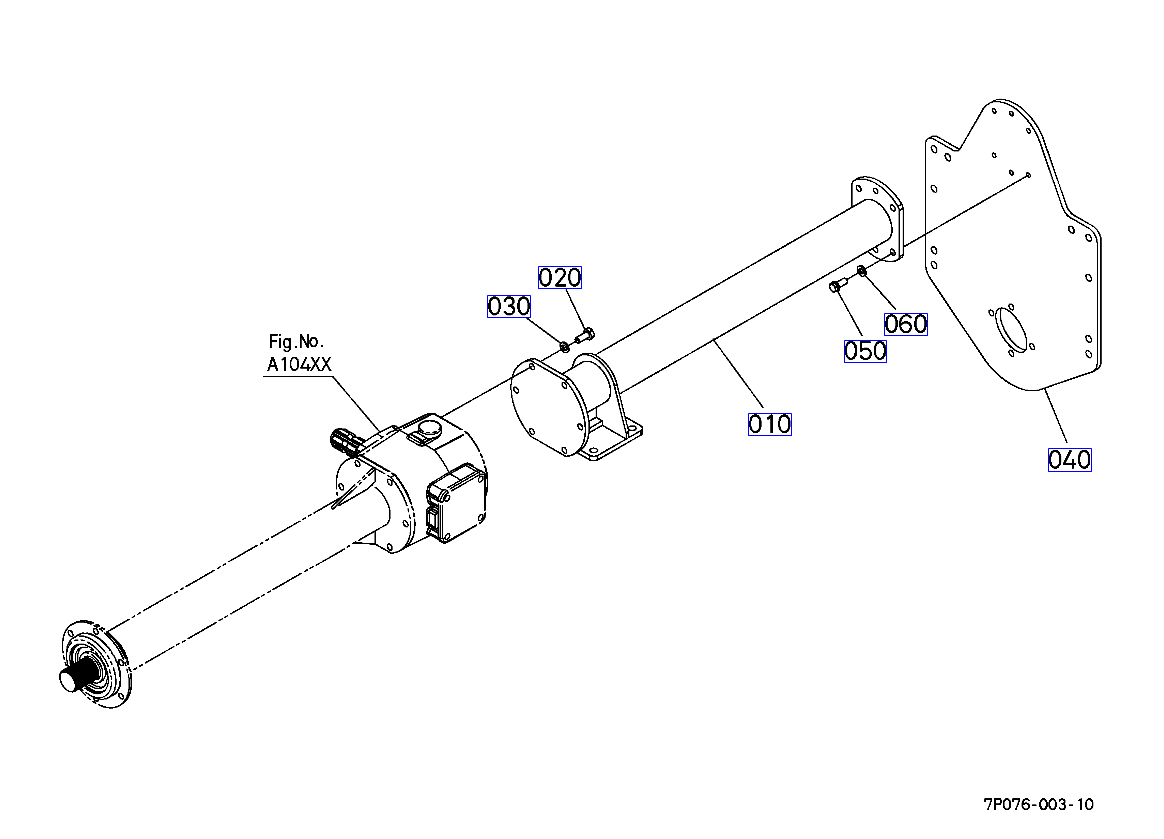

Hộp phải

STT	Tên sản phẩm	Mã số	Giá bán
010	ARM, EXTENSION RH ( kg) (Tay nối)	W9516-53310	2,972,000
020	BOLT (0.025 kg) (Bu lông)	01073-51025	12,000
030	WASHER,SPRING ( kg) (Long đền)	W9519-55020	15,000
040	PLATE(RH) ( kg) (PLATE(RH))	7P076-53320	3,225,000
050	HEX.BOLT (0.025 kg) (Bu lông)	01053-51025	12,000
060	WASHER,SPRING ( kg) (Long đền)	W9519-55020	15,000

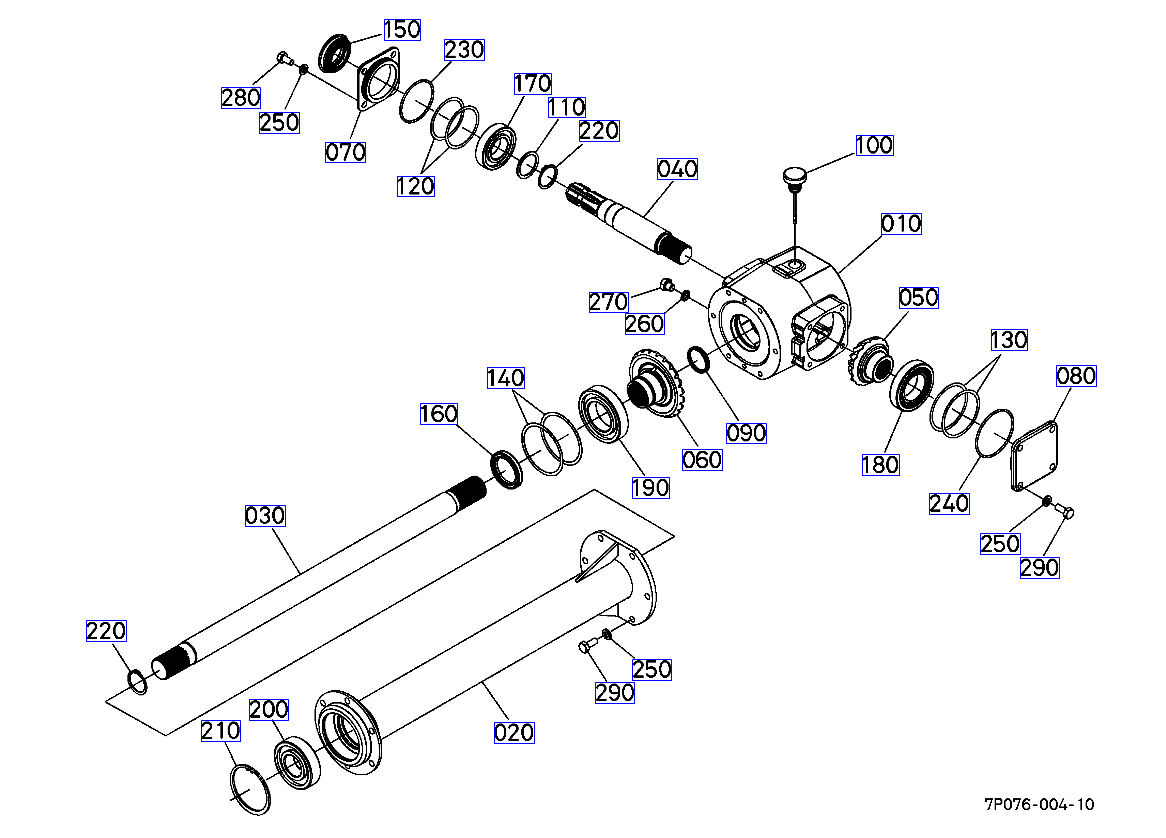

Hộp bánh răng

STT	Tên sản phẩm	Mã số	Giá bán
010	GEAR CASE ( kg) (Bánh răng)	W9516-51460	5,160,000
020	ARM(EXTENSION,LH) ( kg) ()	7P076-51470	3,286,000
030	SHAFT(EXTENSION) ( kg) (Trục)	7P076-51480	3,241,000
040	SHAFT PIC ( kg) (Trục)	W9516-51490	1,527,000
050	BEVEL GEAR 15T ( kg) (Bánh răng)	W9516-51500	2,117,000
060	BEVEL GEAR 22T ( kg) (Bánh răng)	W9516-51510	2,124,000
070	CAP, FRONT ( kg) (Nắp)	W9518-51670	281,000
080	CAP, REAR ( kg) (Nắp)	W9516-51520	329,000
090	CAP, GEAR ( kg) (Nắp)	W9516-51530	72,000
100	PLUG, OIL LEVEL ( kg) ()	W9516-51600	206,000
110	COLLAR, ID40 ( kg) (Vòng đệm)	W9518-51710	77,000
120	SHIM, PINION FRONT T 0.4mm ( kg) (Miếng chèn)	W9518-51730	77,000
120	SHIM, PINION FRONT T 0.3mm ( kg) (Miếng chèn)	W9518-51740	83,000
120	SHIM, PINION FRONT T 0.5mm ( kg) (Miếng chèn)	W9518-51750	55,000
130	SHIM, PINION REAR T0 0.4mm ( kg) (Miếng chèn)	W9516-51540	86,000
130	SHIM, PINION REAR T0 0.3mm ( kg) (Miếng chèn)	W9516-51550	86,000
130	SHIM, PINION REAR T0 0.5mm ( kg) (Miếng chèn)	W9516-51560	58,000
140	SHIM, GEAR T0.4 0.4mm ( kg) (Miếng chèn)	W9516-51570	49,000
140	SHIM, GEAR T0.3 0.3mm ( kg) (Miếng chèn)	W9516-51580	86,000
140	SHIM, GEAR T0.5 0.5mm ( kg) (Miếng chèn)	W9516-51590	58,000
150	SEAL,OIL (0.082 kg) (Phớt)	70536-55230	561,000
160	SEAL,OIL ( kg) (Phớt)	09120-50689	129,000
170	BEARING,BALL (0.355 kg) (Bạc đạn)	08101-06208	327,000
180	BEARING,TAPER ROLLER (0.528 kg) (Bạc đạn)	08711-30210	805,000
190	BEARING,BALL (0.600 kg) (Bạc đạn)	08101-06211	517,000
200	BEARING,BALL (0.634 kg) (Bạc đạn)	08103-06308	250,000
210	CIR-CLIP,INTERNAL (0.031 kg) (Kẹp vòng bên trong)	04611-00900	140,000
220	CIR-CLIP,EXTERNAL (0.005 kg) (Kẹp vòng bên ngoài)	04612-00400	18,000
230	O RING (0.002 kg) (Phớt chữ O)	04811-50750	61,000
240	RING (0.003 kg) (Phớt chữ O)	04811-50850	71,000
250	WASHER,SPRING ( kg) (Long đền)	W9519-55020	15,000
260	WASHER,SEAL (0.002 kg) (Long đền)	04717-01200	17,000
270	PLUG ( kg) (Chốt)	62735-11150	39,000
280	BOLT (0.024 kg) (Bu lông)	01073-51020	12,000
290	BOLT (0.025 kg) (Bu lông)	01073-51025	12,000

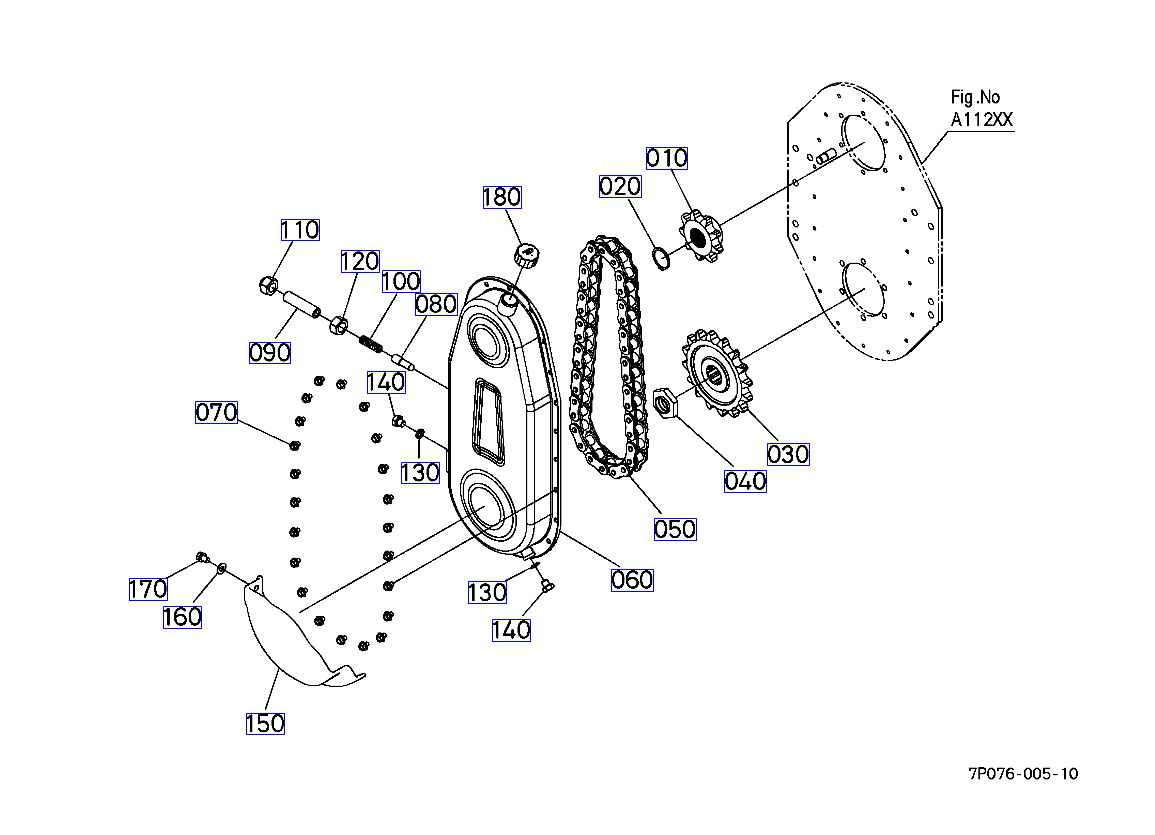

Hộp xích nhông trục

STT	Tên sản phẩm	Mã số	Giá bán
010	SPROCKET 9T (M1.25) ( kg) (Nhông)	W9516-52540	1,607,000
020	CIR-CLIP,EXTERNAL (0.005 kg) (Kẹp vòng bên ngoài)	04612-00400	18,000
030	SPROCKET 15T ( kg) (Nhông)	W9515-52490	2,669,000
040	NUT LOCK M30X2 B55 ( kg) (Đai ốc)	W9516-52440	195,000
050	ASSY CHAIN NO.100G ( kg) (Xích)	W9515-52090	3,310,000
060	COVER(CHAIN) ( kg) (Nắp che)	W9515-52110	2,189,000
070	BOLT,FLANGE (0.010 kg) (Bu lông nôi)	01754-50810	37,000
080	ROD,TIGHTENER ( kg) (Cần)	W9518-52140	77,000
090	BOLT,TIGHTENER ( kg) (Bu lông)	W9518-52130	180,000
100	SPRING (0.018 kg) (Lò xo)	62633-13290	148,000
110	NUT CAP,TIGHTENER ( kg) (Đai ốc)	W9518-52150	99,000
120	NUT (0.059 kg) (Đai ốc)	02074-50200	27,000
130	WASHER,SEAL (0.002 kg) (Long đền)	04717-01200	17,000
140	PLUG ( kg) (Chốt)	62735-11150	39,000
150	GUARD(CHAIN COVER) ( kg) (Nắp)	7P076-52270	1,052,000
160	WASHER,PLAIN (0.004 kg) (Long đền)	04013-50100	6,000
170	BOLT,SEMS (0.030 kg) (Bu lông)	01123-51016	12,000
180	PLUG,OIL ( kg) (Chốt)	W9516-52120	49,000

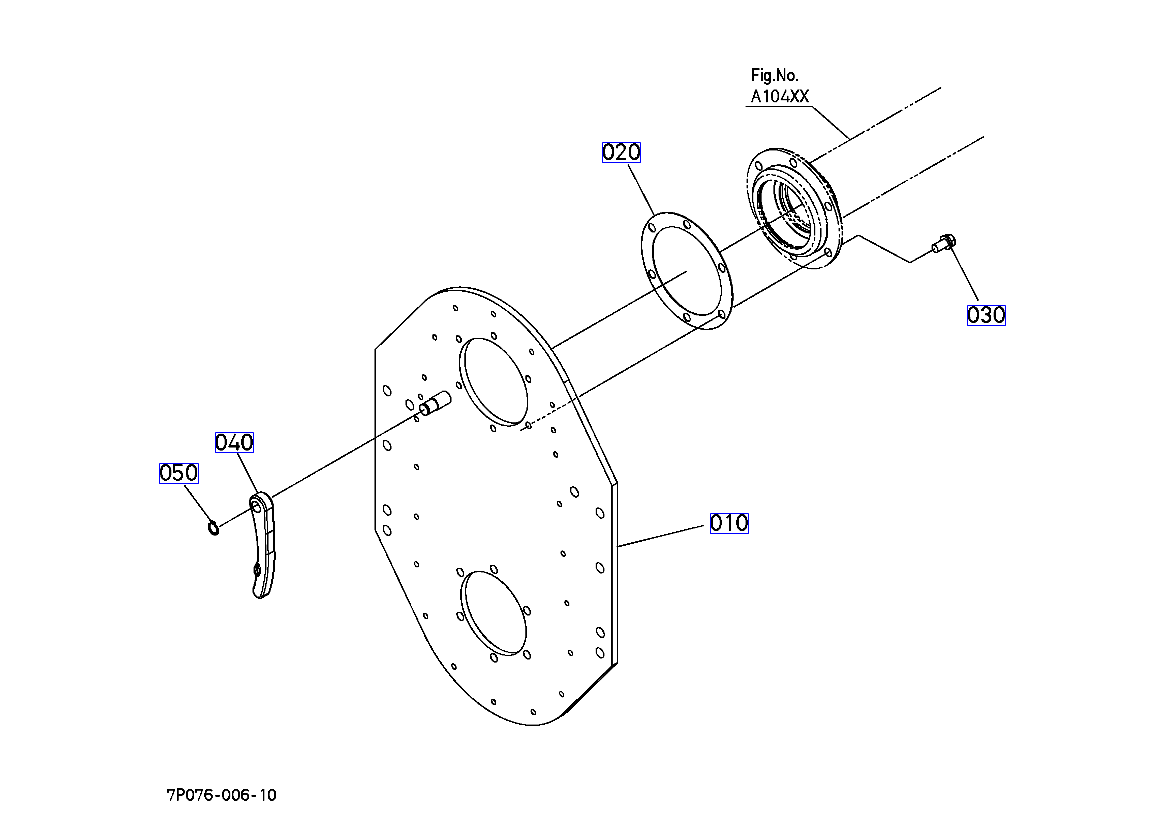

Tấm hộp xích tăng xích

STT	Tên sản phẩm	Mã số	Giá bán
010	PLATE(LH) ( kg) (PLATE(LH))	7P076-53210	4,140,000
020	GASKET,FLANGE UPPER ( kg) (Gioăng đệm)	W9516-52190	53,000
030	BOLT,(M10X20,COAT,2403) ( kg) (Bu lông)	W9516-52160	37,000
040	LEVER, TENSION (RX220) ( kg) (Cần gạt)	W9522-52100	76,000
050	CIR-CLIP (0.001 kg) (Kẹp vòng)	04612-00140	6,000

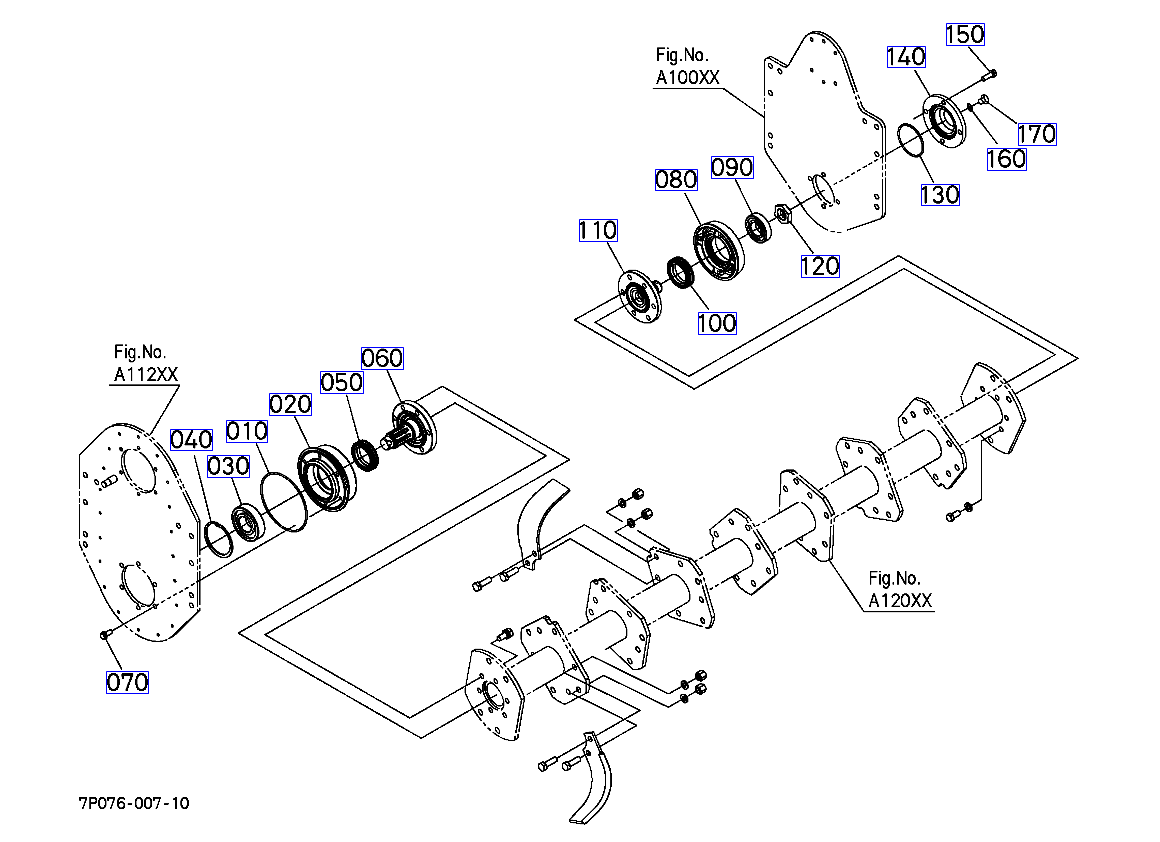

Hộp trục láp dưới

STT	Tên sản phẩm	Mã số	Giá bán
010	RING (0.007 kg) (Vòng chữ O)	04811-07500	50,000
020	HOUSING BEARING LH ( kg) (Vỏ bạc đạn)	W9516-52420	1,223,000
030	BEARING,BALL (0.634 kg) (Bạc đạn)	08103-06308	250,000
040	CIR-CLIP,INTERNAL (0.031 kg) (Kẹp vòng bên trong)	04611-00900	140,000
050	MECHANICAL SEAL ( kg) (Phao)	W9518-52200	919,000
060	SHAFT(LH,F) ( kg) (Trục)	7P676-52430	2,257,000
070	BOLT, M10X25 ( kg) (Bu lông)	W9516-52490	25,000
080	HOUSING BEARING RH ( kg) (Vỏ bạc đạn)	W9516-53240	789,000
090	BEARING,BALL (0.280 kg) (Bạc đạn)	08103-06207	241,000
100	MECHANICAL SEAL ( kg) (Phao)	W9518-52200	919,000
110	SHAFT(RH,F) ( kg) ()	7P676-53230	1,540,000
120	NUT LOCK M30X2 ( kg) (Đai ốc)	W9516-52080	130,000
130	RING (0.003 kg) (phớt chữ o)	04811-07800	35,000
140	COVER(SHAFT,RH) ( kg) (Nắp che)	7P076-53250	584,000
150	BOLT,SEMS (0.026 kg) (Bu lông)	01123-51032	12,000
160	WASHER,SEAL (0.002 kg) (Long đền)	04717-01200	17,000
170	PLUG ( kg) (Chốt)	62735-11150	39,000

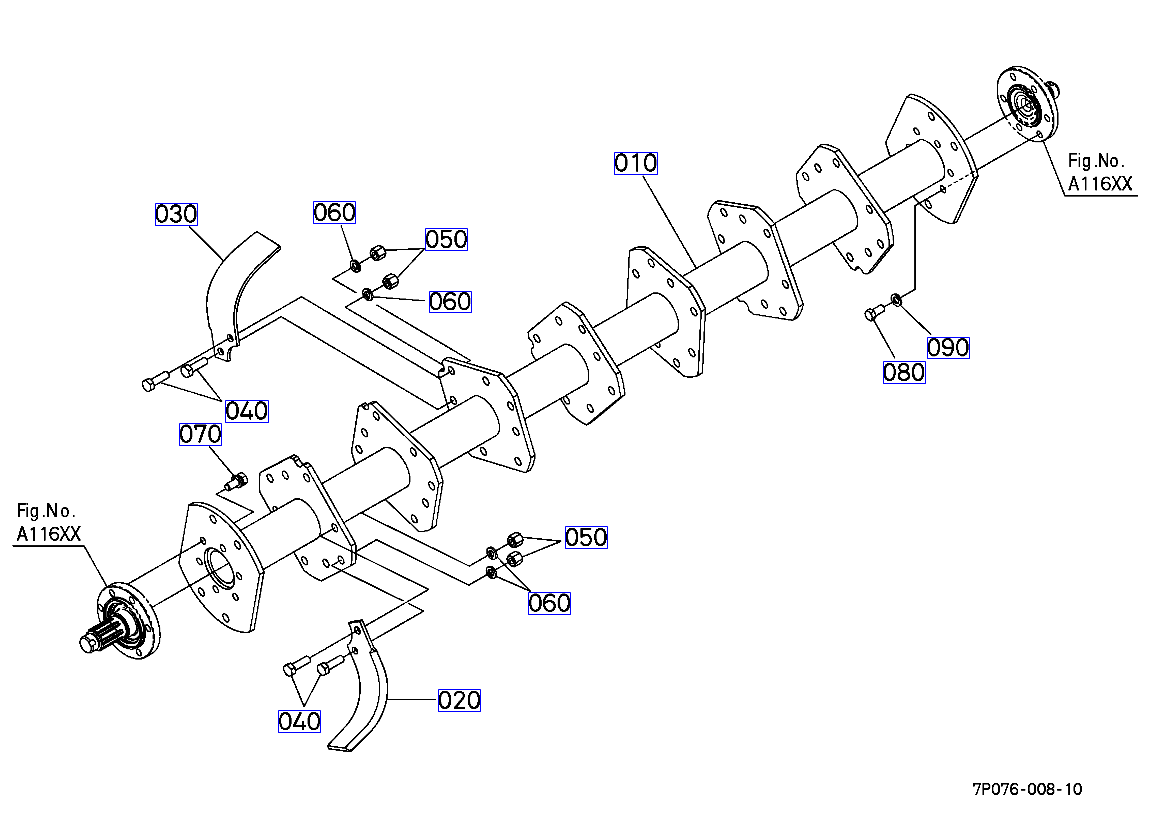

Trục xới dao xới

STT	Tên sản phẩm	Mã số	Giá bán
010	SHAFT(BLADE,F) ( kg) ()	7P676-54210	15,789,000
020	BLADE(KI,LH) ( kg) (Lưỡi xới trái)	7P676-54060	272,000
030	BLADE(KI,RH) ( kg) (Lưỡi xới trái)	7P676-54070	289,000
040	BOLT(BLADE) ( kg) ()	7P145-54110	69,000
050	NUT(BLADE) ( kg) (Đai ốc)	7P145-54120	28,000
060	WASHER,SPRING LOCK (0.007 kg) (Long đền)	04512-50140	3,000
070	BOLT ( kg) (Bu lông)	TC496-85300	42,000
080	HEX.BOLT (0.033 kg) (Bu lông)	01173-51225	16,000
090	WASHER,SPRING ( kg) (Vòng đệm)	W9519-55010	12,000

Thanh trượt

STT	Tên sản phẩm	Mã số	Giá bán
010	SKI, LEFT ( kg) (SKI, LEFT)	W9515-57340
020	SKI, RIGHT ( kg) (Miếng chặn)	W9517-57420
030	HEX.BOLT (0.042 kg) (Bu lông)	01053-51235	19,000
040	WASHER,SPRING ( kg) (Vòng đệm)	W9519-55010	12,000
050	HEX.NUT (0.017 kg) (Đai ốc)	02056-50120	6,000

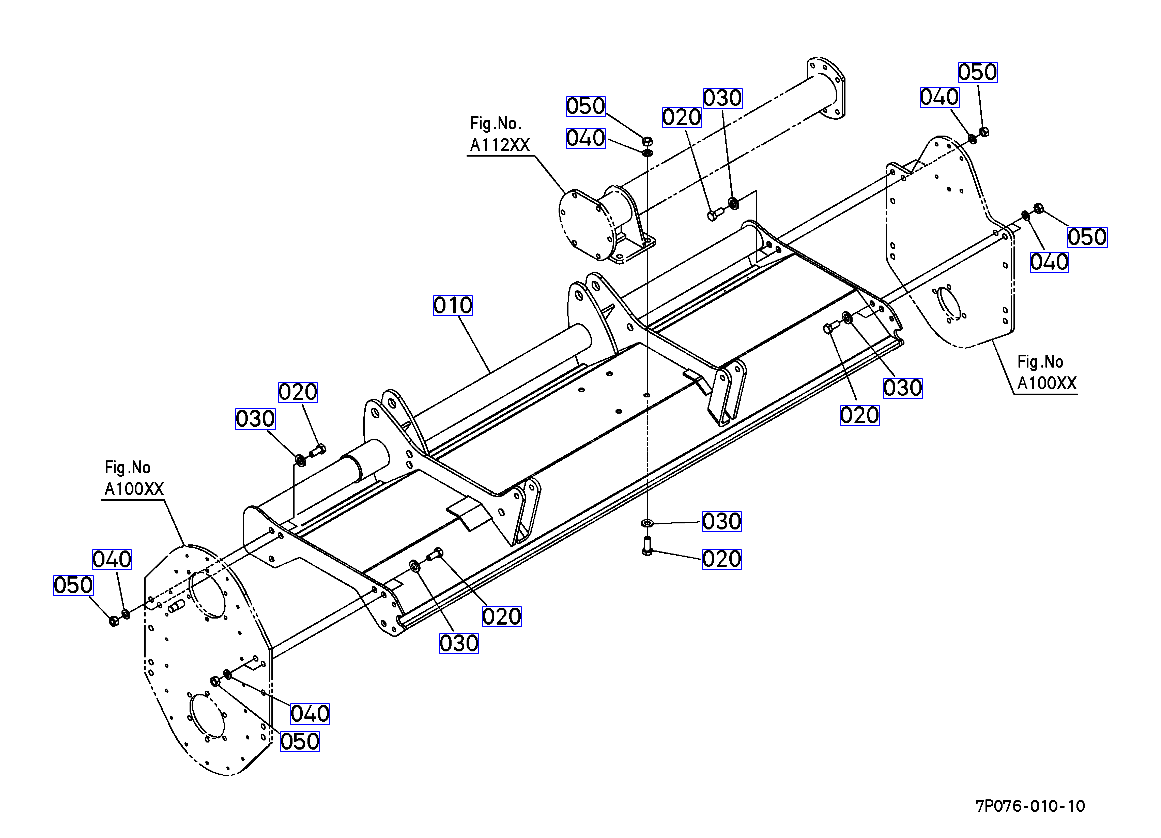

Khung 2

STT	Tên sản phẩm	Mã số	Giá bán
010	COVER(COMP) ( kg) ()	7P076-56422	18,808,000
020	HEX.BOLT (0.041 kg) (Bu lông)	01176-51235	19,000
030	WASHER,PLAIN ( kg) ()	7P145-56150	44,000
040	WASHER,SPRING ( kg) (Vòng đệm)	W9519-55010	12,000
050	NUT (0.015 kg) ()	02076-50120	8,000

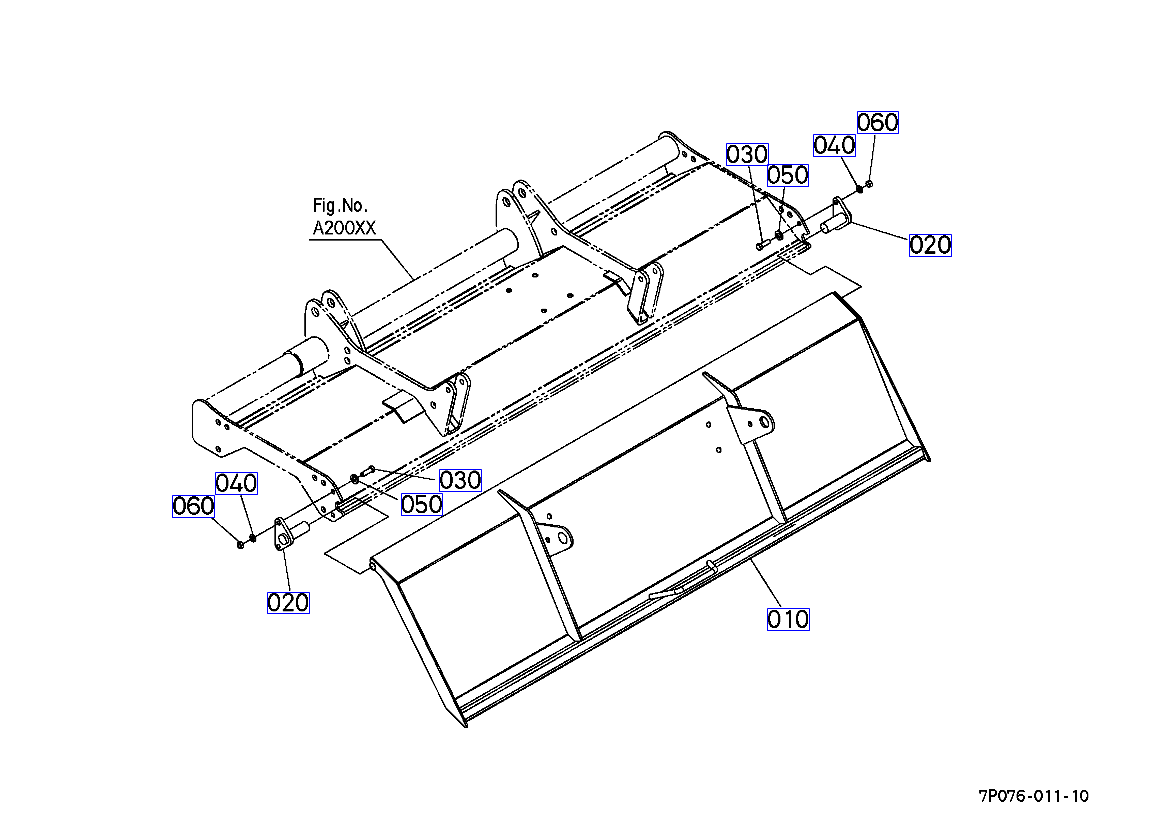

Tấm chắn phía sau

STT	Tên sản phẩm	Mã số	Giá bán
010	COVER(REAR) ( kg) (Nắp)	7P076-56510	9,780,000
020	SUPPORT(REAR COVER) ( kg) (Nắp)	7P076-56122	200,000
030	HEX.BOLT (0.022 kg) (Bu lông)	01176-51030	16,000
040	WASHER,SPRING ( kg) (Long đền)	W9519-55020	15,000
050	WASHER,PLAIN ( kg) (Long đền)	7P076-56150	59,000
060	NUT (0.006 kg) (Đai ốc)	02076-50100	8,000

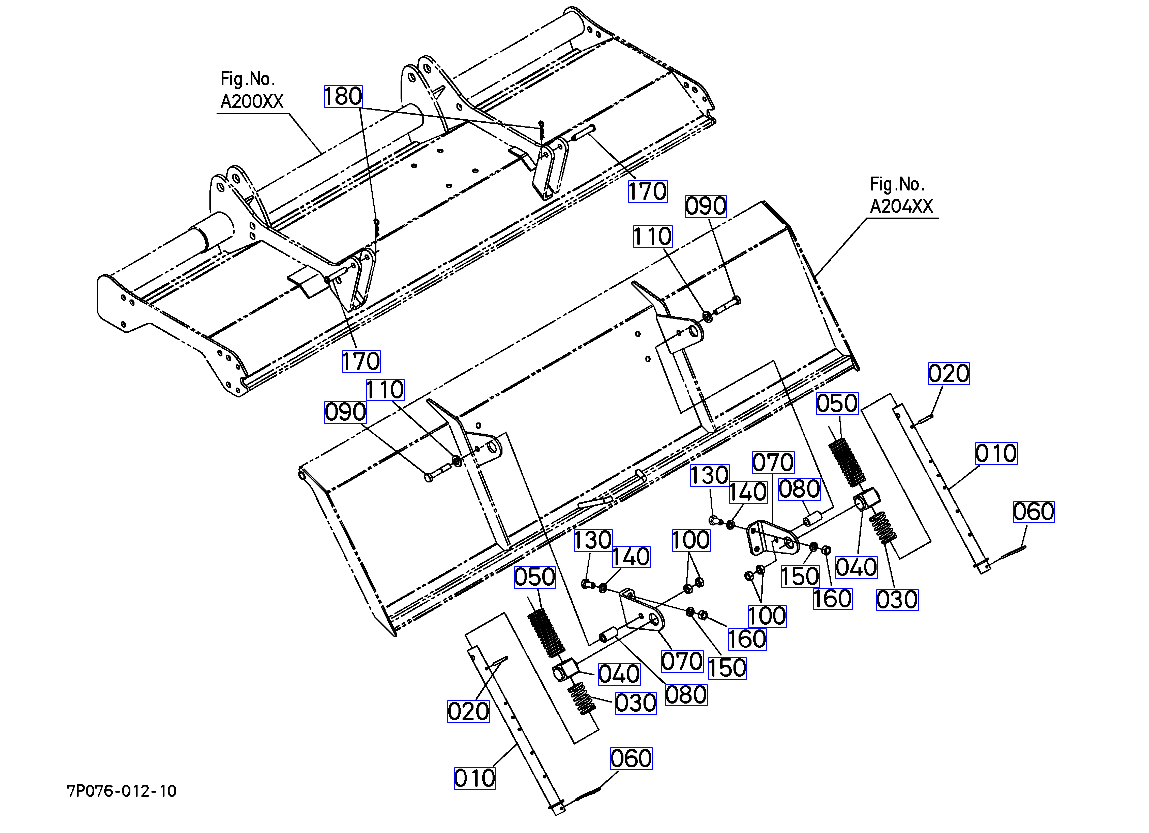

Thanh treo lò xo

STT	Tên sản phẩm	Mã số	Giá bán
010	ROD(COVER) ( kg) (Nắp)	7P076-56330	372,000
020	PIN,SPRING (0.014 kg) (Chốt)	05411-01040	31,000
030	SPRING,ROD LOWER ( kg) (Lò xo)	W9518-56320	97,000
040	SPACER GUIDE ( kg) (SPACER,GUIDE)	W9518-56330	189,000
050	SPRING,ROD UPPER ( kg) (Lò xo)	W9518-56340	121,000
060	PIN(ROD,COVER) ( kg) ()	7P076-56352	101,000
070	PLATE(ROD HOLDER) ( kg) (PLATE(ROD HOLDER))	7P076-56320	206,000
080	COLLAR,STOPPER ( kg) (Bạc nối)	W9516-56370	73,000
090	HEX.BOLT (0.075 kg) (Bu lông)	01176-51280	29,000
100	NUT (0.015 kg) ()	02076-50120	8,000
110	WASHER,PLAIN ( kg) ()	7P145-56150	44,000
130	HEX.BOLT (0.030 kg) (Bu lông)	01176-51230	16,000
140	WASHER,PLAIN ( kg) ()	7P145-56150	44,000
150	WASHER,SPRING ( kg) (Vòng đệm)	W9519-55010	12,000
160	NUT (0.015 kg) ()	02076-50120	8,000
170	PIN,JOINT (0.060 kg) (Chốt)	05122-51265	47,000
180	PIN SNAP (0.003 kg) (Chốt khóa)	05515-51200	15,000
