NẮP ĐẬY MÁY

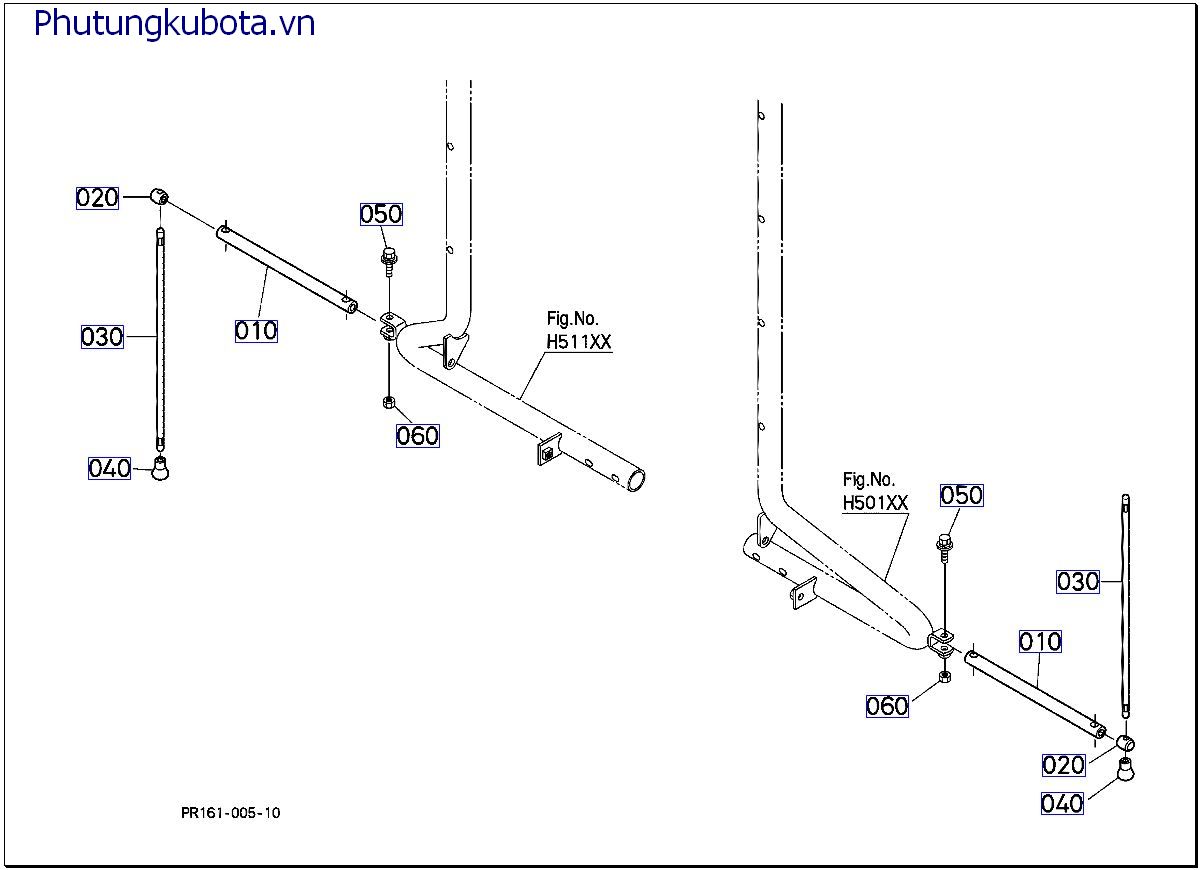

Bộ tạo dấu

STT	Tên sản phẩm	Mã số	Giá bán
010	Thanh nối (ARM,MARKER) 0kg	PR151-85560	77,000
020	Nắp (CAP,MARKER) 0kg	PR151-86380	12,000
030	Thanh chống (MARKER) 0kg	PR151-47510	55,000
040	Kẹp (GRIP,MARKKER) 0kg	PR151-83430	23,000
050	BU LÔNG (BOLT,W SEMS) <=711991 0.02kg	01125-50840	19,000
050	BU LÔNG (BOLT,W SEMS) >=711992 0.02kg	01125-50845	18,000
060	ĐINH ỐC (HEX.NUT) 0.005kg	02114-50080	6,000

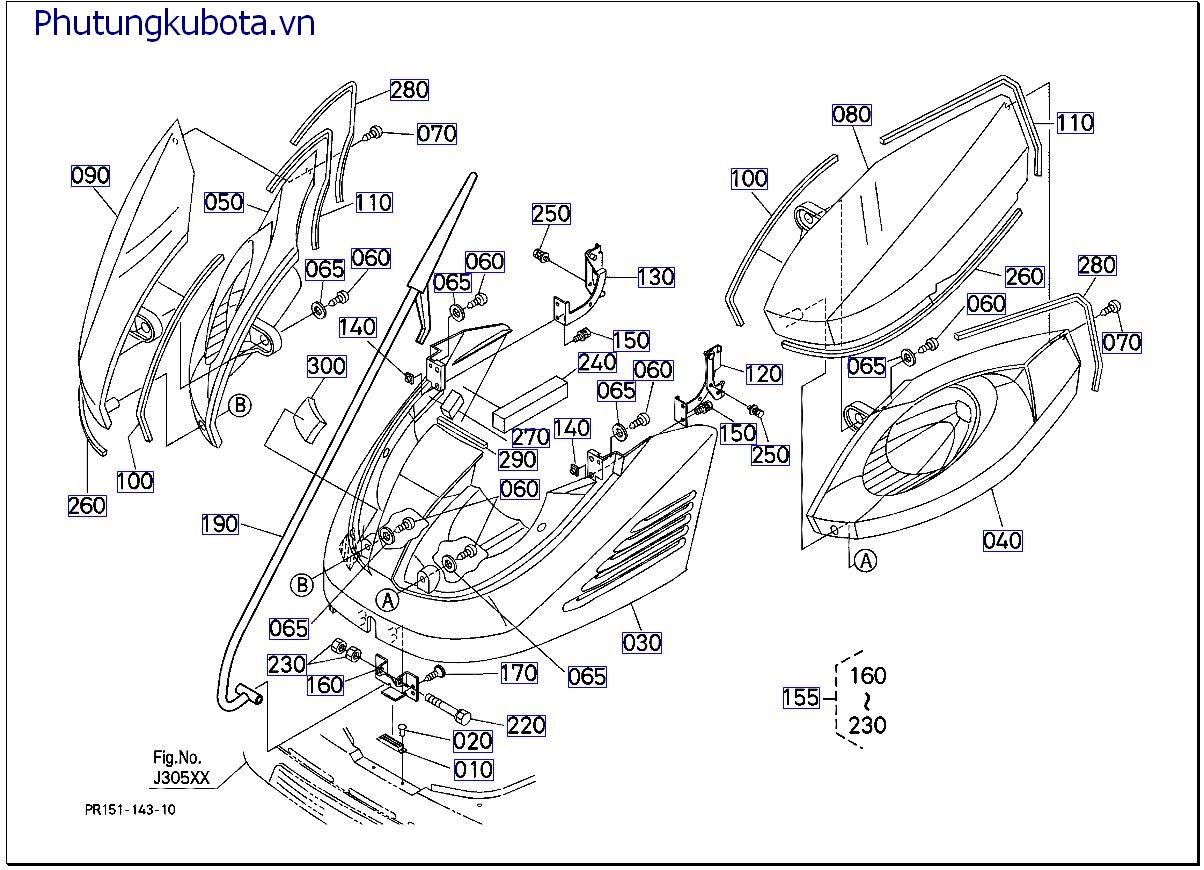

Nắp cabo trước

STT	Tên sản phẩm	Mã số	Giá bán
010	Nam châm (MAGNET) 0.032kg	PN201-85380	187,000
020	RIVET (RIVET) 0.001kg	PL501-85300	6,000
030	CA-PÔ (BONNET) 1kg	PR001-85110	811,000
040	REFLECTOR,LH (REFLECTOR,LH) 0.32kg	PR001-85220	1,728,000
050	REFLECTOR,RH (REFLECTOR,RH) 0.32kg	PR001-85230	1,521,000
060	ĐINH VÍT, CẮT REN (SCREW,TAPPING) 0.002kg	03614-50416	6,000
065	VÒNG ĐỆM BẰNG (WASHER,PLAIN) 0.001kg	04013-50040	3,000
070	Vít (SCREW,TAPPING) 0.001kg	03614-50312	6,000
080	COVER,LAMP LH (COVER,LAMP LH) 0.25kg	PR001-85120	370,000
090	COVER,LAMP RH (COVER,LAMP RH) 0.25kg	PR001-85150	370,000
100	VÒNG ĐỆM (SEAL,LENS) 0.002kg	PR001-85180	19,000
110	VÒNG ĐỆM (SEAL,LENS) 0.002kg	PR001-85190	19,000
120	SUPPORT,SHUTTER LH (SUPPORT,SHUTTER LH) 0.158kg	PR001-85370	247,000
130	SUPPORT,SHUTTER RH (SUPPORT,SHUTTER RH) 0.16kg	PR001-85380	248,000
140	ĐAI ỐC,LÒ XO (NUT,SPRING) 0.006kg	T0270-99160	37,000
150	BU LÔNG (BOLT) 0.02kg	01025-50620	8,000
155	MARKER,ASSY (MARKER,ASSY) 0.43kg	PR152-85300	1,189,000
160	Giá đỡ (BRACKET,MASCOT) 0.06kg	PR001-85262	108,000
170	Vít (SCREW,TAPPING) 0.002kg	PR001-85390	8,000
190	Thanh giữ ca bô (MARKER,MASCOT) 0.41kg	PL501-85212	447,000
220	BU LÔNG (BOLT,SEMS) 0.02kg	01123-50860	15,000
230	ĐINH ỐC (HEX.NUT) 0.004kg	02156-50080	6,000
240	CUSHION (CUSHION) 0.017kg	PR001-82433	203,000
250	BU LÔNG (BOLT,W SEMS(WAVE SPRING)) 0.006kg	01029-50616	8,000
260	VÒNG ĐỆM (SEAL,LENS) 0.002kg	PR001-85140	19,000
270	CUSHION (CUSHION) 0.007kg	PR001-82463	76,000
280	SEAL (SEAL) 0.005kg	PR001-85352	34,000
290	SEAL (SEAL) 0.003kg	PR001-85362	17,000
300	đệm giảm chấn (CUSHION,INSULATOR) 0.01kg	PR251-82380	17,000

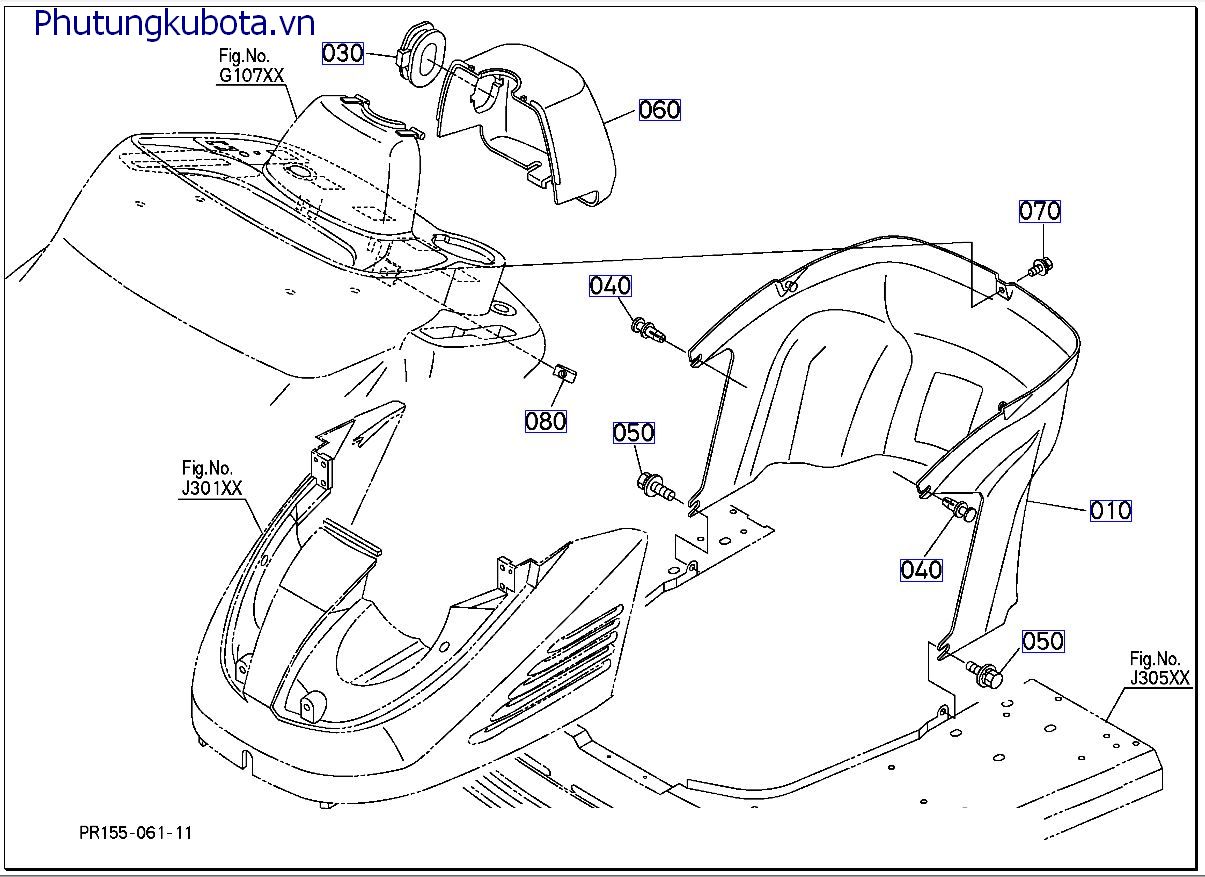

Nắp cabo sau

STT	Tên sản phẩm	Mã số	Giá bán
010	Khung (BONNET) 0.9kg	PR001-85130	717,000
030	PLUG,POST (PLUG,POST) 0kg	PR151-66540	45,000
040	CLIP,BONNET (CLIP,BONNET) 0.005kg	PR001-85890	37,000
050	BU LÔNG (BOLT,W SEMS(LARGE WASHER)) 0.01kg	01027-50616	11,000
050	BOLT (BOLT) 0.01kg	PL501-85240	19,000
060	CAP,POST (CAP,POST) 0.075kg	PR001-66533	163,000
070	Bu lon (BOLT) 0.007kg	5H700-31560	8,000
080	NUT (NUT) 0.005kg	38240-29250	19,000

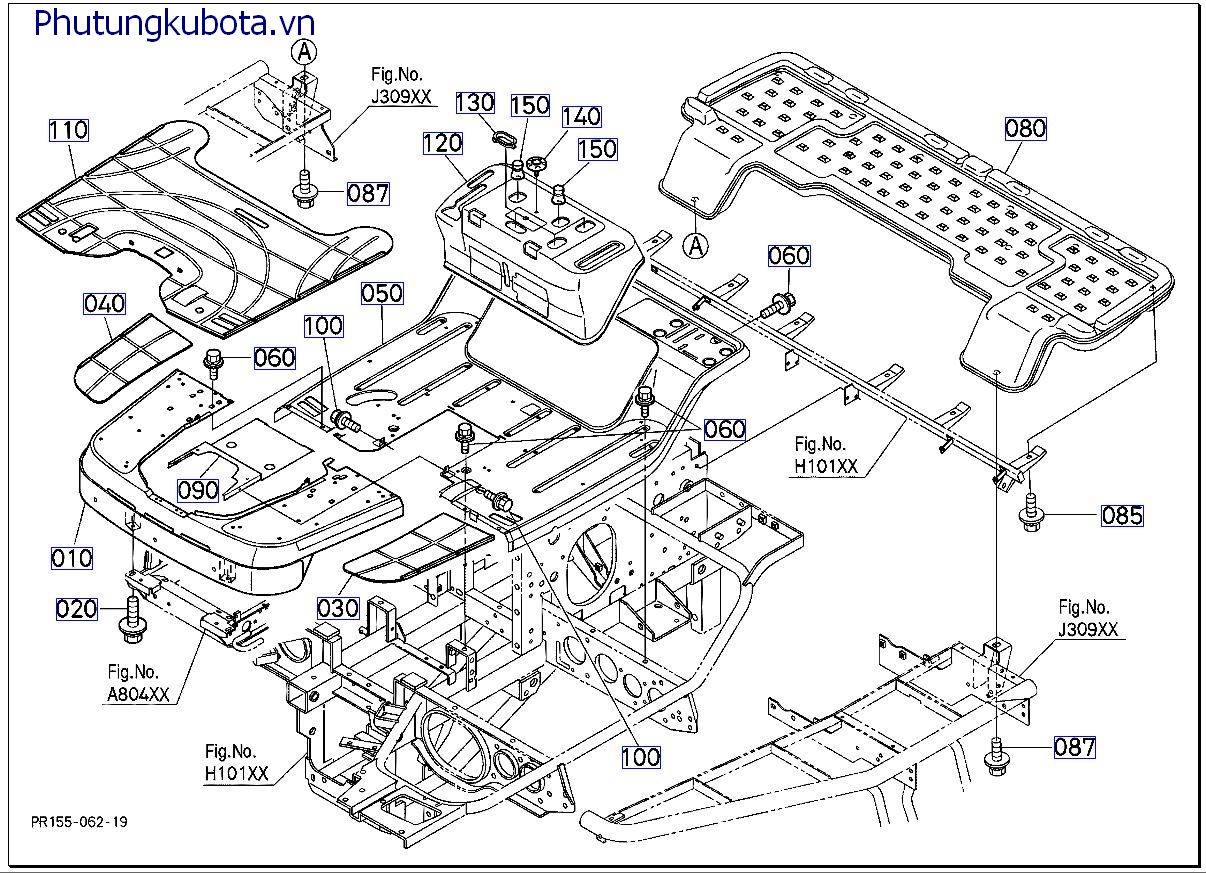

Tấm sàn

STT	Tên sản phẩm	Mã số	Giá bán
010	Khung viền (STEP,FRONT) 6.9kg	PR152-85315
010	Khung viền (STEP,FRONT) <=711906 0kg	PR152-85317	9,119,000
010	Khung viền (STEP,FRONT) >=711907 6.9kg	PR152-85316	7,361,000
010	Khung viền (STEP,FRONT) >=712078 6.9kg	PR152-85317	9,119,000
010	Khung viền (STEP(FRONT)) >=712143 7kg	PR152-87310	6,707,000
020	BU LÔNG (BOLT,W SEMS) 0.014kg	01125-50820	8,000
030	MAT,FRONT LH (MAT,FRONT LH) 0kg	PR151-85320	264,000
040	MAT,FRONT RH (MAT,FRONT RH) 0kg	PR151-85330	264,000
050	ỐNG LÓT Ổ TRỤC (STEP) <=711906 6.5kg	PP551-85422	15,581,000
050	ỐNG LÓT Ổ TRỤC (STEP) >=711907 6.5kg	PP551-85422	15,581,000
060	BU LÔNG (BOLT,W SEMS(WAVE SPRING)) 0.006kg	01029-50616	8,000
080	sàn sau (STEP,EXTENSION) 0kg	PR151-85412	3,796,000
085	BU LÔNG (BOLT,W SEMS(LARGE WASHER)) 0.02kg	01127-50816	8,000
087	BU LÔNG (BOLT,W SEMS(LARGE WASHER)) 0.02kg	01127-50820	11,000
090	STEP(CENTER) (STEP(CENTER)) 0kg	PR151-85420	359,000
100	BU LÔNG (BOLT) 0.005kg	01025-50616	8,000
110	TẤM LÓT (MAT,STEP) 0kg	PR151-85430	1,511,000
120	COVER,CENTER (COVER,CENTER) 0kg	PR151-85612	688,000
130	Nắp (CAP) <=712077 0kg	PR151-85620	74,000
130	Nắp (CAP) >=712078 0kg	PR151-85622	73,000
140	BU LÔNG, TAY NẮM (BOLT,KNOB) 0kg	PR151-85630	41,000
150	ĐỆM (CUSHION) 0.051kg	PP501-85632	118,000

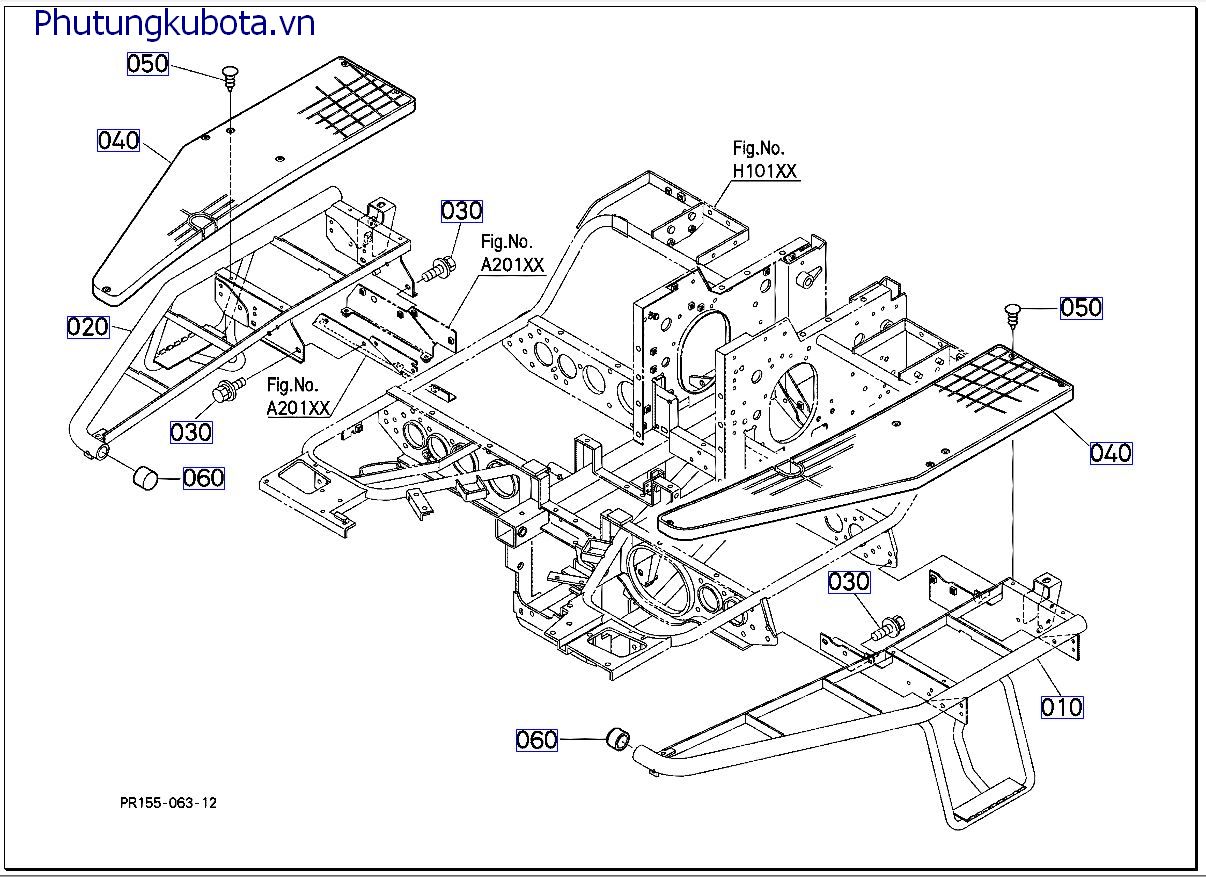

Tấm sàn ( mở rộng)

STT	Tên sản phẩm	Mã số	Giá bán
010	FRAME,STEP LH (FRAME,STEP LH) 0kg	PR151-85443	2,253,000
020	FRAME,STEP RH (FRAME,STEP RH) 0kg	PR151-85454	1,922,000
030	BU LÔNG (BOLT,W SEMS) 0.014kg	01125-50820	8,000
040	Tấm bước (STEP,WIDE) 0kg	PR151-85480
050	Vít (SCREW,TAPPING) 0.002kg	03514-50516	8,000
060	CAP,STEP (CAP,STEP) 0kg	PR151-85490	16,000

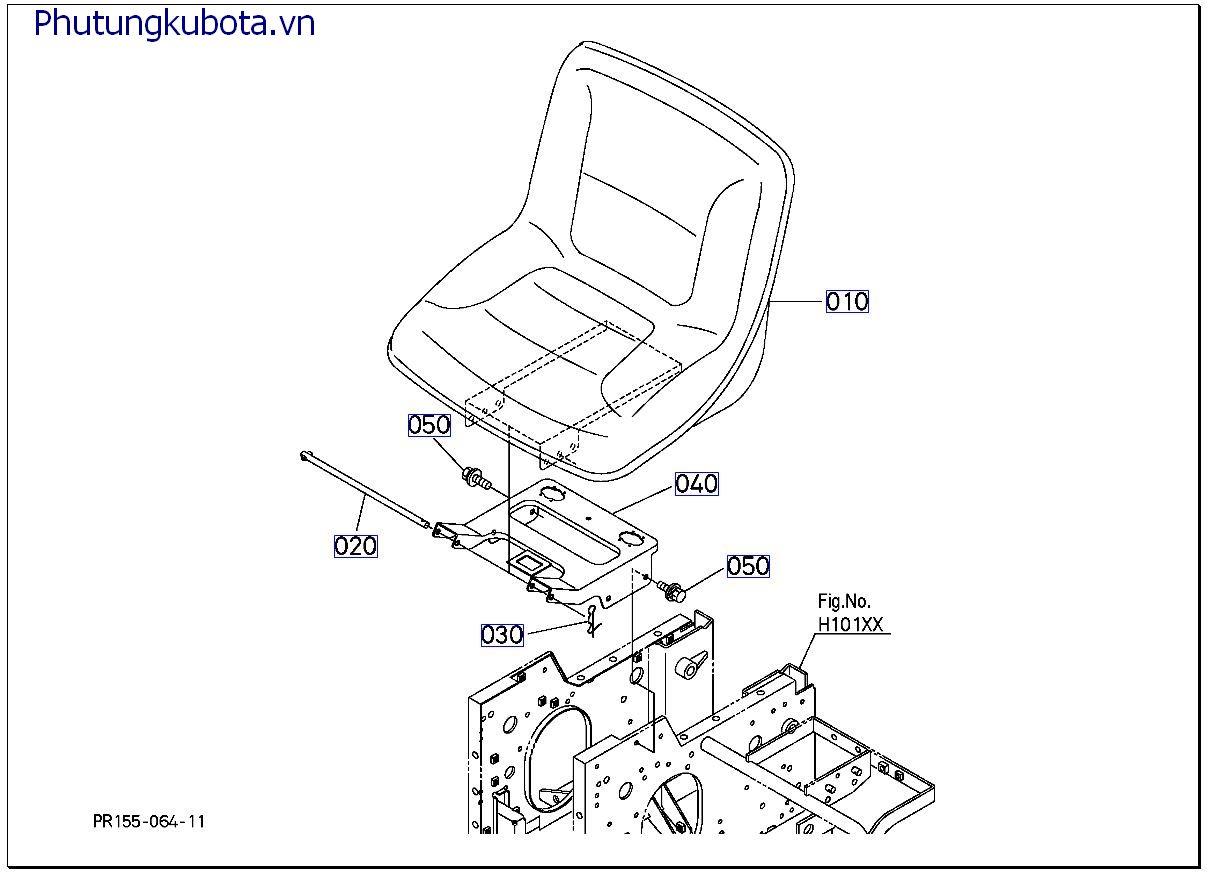

Ghế

STT	Tên sản phẩm	Mã số	Giá bán
010	Bộ ghế (ASSY SEAT) 0kg	PR151-85740	2,422,000
020	Chốt (PIN) 0kg	PR151-85750
030	CHỐT, KHUÔN TÁN ĐINH (SNAP PIN(8,HOLD)) 0.003kg	PG001-34120	9,000
040	Tấm đế ghế ngồi (BRACKET,SEAT) 0.9kg	PR152-84220	1,532,000
050	BU LÔNG (BOLT,W SEMS) 0.014kg	01125-50820	8,000

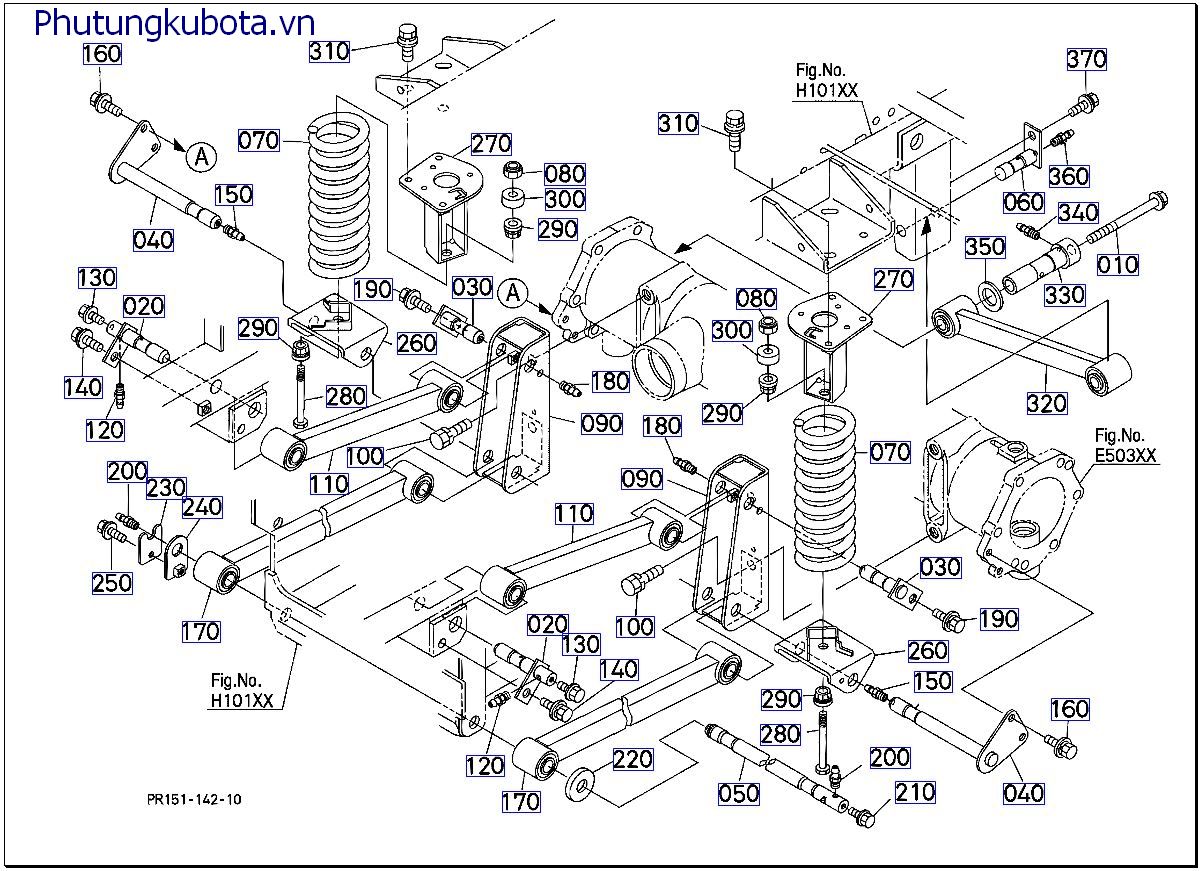

Khung giảm chấn

STT	Tên sản phẩm	Mã số	Giá bán
010	BU LÔNG,MÉP (BOLT,FLANGE) 0.06kg	01774-51090	34,000
020	PIN (PIN) <=711963 0kg	PR182-84450
020	PIN (PIN) >=711964 0.15kg	PR182-84452	559,000
030	PIN (PIN) >=711963 0kg	PR182-84390
030	PIN (PIN) >=711964 0.12kg	PR182-84392	520,000
040	PIN (PIN) <=711963 0kg	PR182-84460
040	PIN (PIN) >=711964 0.33kg	PR182-84462	711,000
050	PIN (PIN) 0kg	PR182-84480	562,000
060	PIN(SUSPENSION REAR) (PIN(SUSPENSION REAR)) <=711963 0kg	PR182-84380
060	PIN(SUSPENSION REAR) (PIN(SUSPENSION REAR)) >=711964 0.1kg	PR182-84382	433,000
070	SPRING (SPRING) <=711525 1.485kg	PR001-84440	1,305,000
070	Lò xo (SPRING) >=711526 1.47kg	PR152-84440	1,220,000
080	ĐAI ỐC, KHÓA (NUT,LOCKING) 0.008kg	02572-50100	37,000
090	STAY (STAY) 0kg	PR151-84380	462,000
100	BU LÔNG (BOLT,SEMS) 0.04kg	01133-51230	15,000
110	ROD (ROD) 0kg	PR151-84320	629,000
120	VÒI, BƠM MỠ (NIPPLE,GREASE) 0.003kg	06613-10675	25,000
130	BU LÔNG,MÉP (BOLT,FLANGE) 0.006kg	01754-50610	11,000
140	BU LÔNG (BOLT,W SEMS) 0.018kg	01125-50825	11,000
150	VÒI, BƠM MỠ (NIPPLE,GREASE) 0.003kg	06613-10675	25,000
160	BU LÔNG (BOLT,W SEMS) 0.014kg	01125-50820	8,000
170	ROD (ROD) 0kg	PR151-84330	907,000
180	VÒI, BƠM MỠ (NIPPLE,GREASE) 0.003kg	06613-10675	25,000
190	BU LÔNG (BOLT,W SEMS) 0.014kg	01125-50820	8,000
200	VÒI, BƠM MỠ (NIPPLE,GREASE) 0.003kg	06613-10675	25,000
210	BU LÔNG,MÉP (BOLT,FLANGE) 0.006kg	01754-50610	11,000
220	Long đền (WASHER) 0kg	PR151-91290	23,000
230	COLLAR (COLLAR) 0kg	PR151-84470	19,000
240	PLATE (PLATE) 0kg	PR151-84510	31,000
250	BU LÔNG (BOLT) 0.005kg	01025-50616	8,000
260	BRACKET (BRACKET) 0kg	PR151-84350
270	BRACKET (BRACKET) 0kg	PR151-84340	279,000
280	ROD (ROD) 0kg	PR151-84360	88,000
290	GROMMET (GROMMET) 0kg	PR151-84450	11,000
300	Bạc nối (COLLAR) 0kg	PR151-84420	53,000
310	BU LÔNG (BOLT,W SEMS) 0.018kg	01125-50825	11,000
320	ROD (ROD) 0kg	PR151-84310
330	Bạc nối (COLLAR) 0kg	PR151-84410	150,000
340	VÒI, BƠM MỠ (NIPPLE,GREASE) 0.003kg	06613-10675	25,000
350	VÒNG ĐỆM BẰNG (WASHER,PLAIN) 0.011kg	04013-50160	7,000
360	VÒI, BƠM MỠ (NIPPLE,GREASE) 0.003kg	06613-10675	25,000
370	BU LÔNG (BOLT,W SEMS) 0.014kg	01125-50820	8,000
